Overview

The Slate Jobs component is a background job/persistant task queue system for Kotlin and is similar to Ruby SideKiq, NodeJS Bull. It leverages Kotlin Coroutines and Channels for concurrency based operations to gracefully start, stop, pause, resume jobs.


    slatekit new job -name="SampleJob" -package="mycompany.apps"

You can download the Slate Kit Project Generator at slatekit-cli.
Install instructions located at Generators.

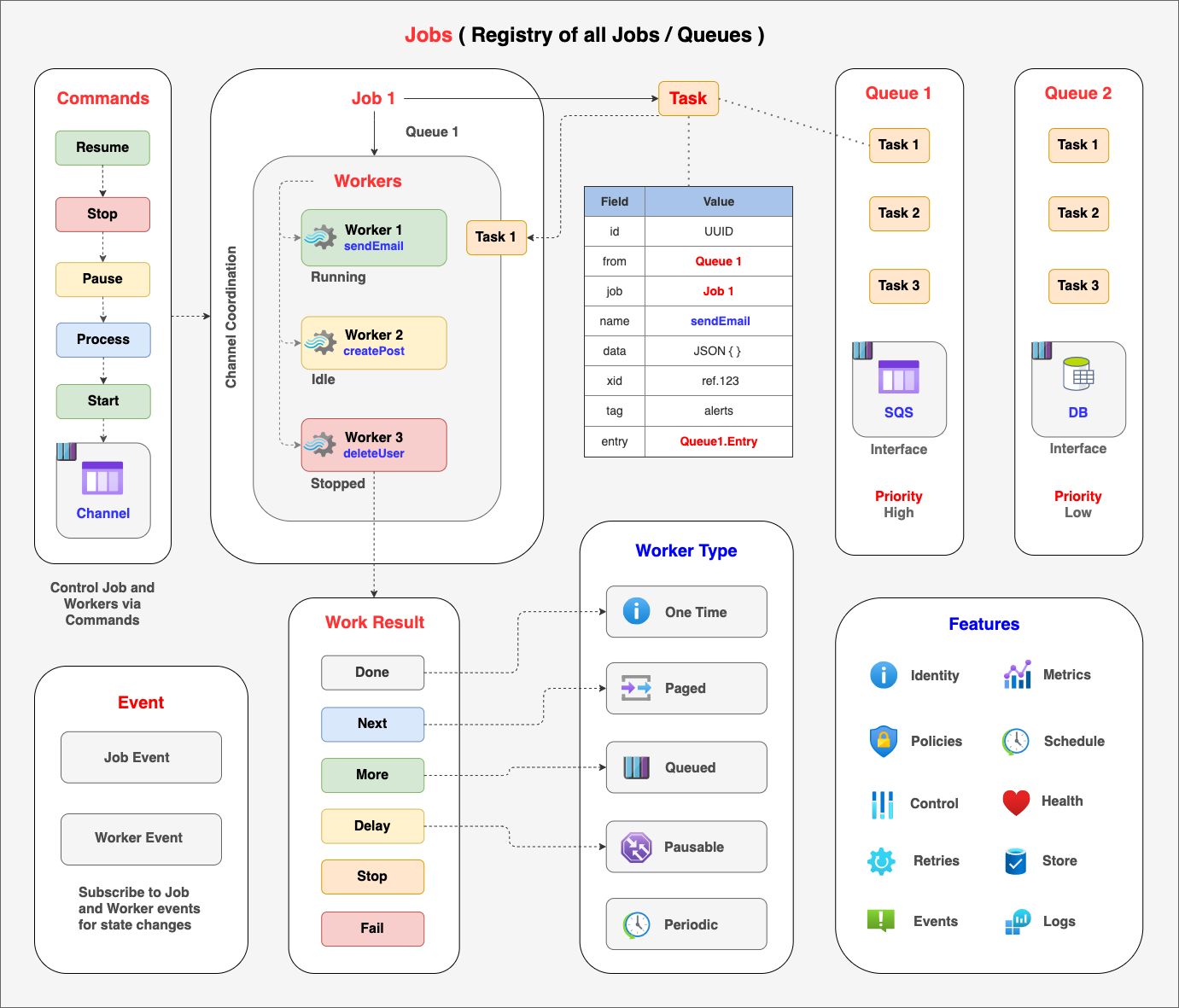

Diagram

A high-level diagram of the concepts in this component

Goals

Goal	Description
1. Job types	Different types of jobs OneTime, Paged, Queued job types.
2. Diagnostics	Multiple types of diagnostics and tracking of jobs statistics available
3. Policies	Policies as middleware and hooks to restrict, customize, or enhance jobs

Status

This component is currently stable and there is a project generator for it

Feature	Status	Description
Periodic	Upcoming	Support for periodic and scheduled jobs
Flow	Upcoming	Integration with Kotlin Flows

Install

    repositories {
        // other repositories
        maven { url  "http://dl.bintray.com/codehelixinc/slatekit" }
    }

    dependencies {
        // other dependencies ...

        compile 'com.slatekit:slatekit-jobs:1.0.0'
    }

Sources

Jar	slatekit.jobs.jar
Package	slatekit.jobs
Sources	slatekit-jobs
Example	Example_Jobs.kt
Version
License
Requires	See build.gradle for more info.

Example

This is a simple example of a Queued worker ( which takes it work from a Task which a unit-of-work stored in-memory or in persistent queue ).


    suspend fun sendNewsLetterFromQueue(task: Task):WorkResult {

        // Get data out of the task
        val userId = task.data.toInt()

        // Simulate getting the user and sending the newsletter
        val user = getUser(userId)
        send(task.job, "Latest News Letter!", user)

        // Acknowledge the task or abandon via task.fail()
        task.done()

        // Indicate that this can now handle more
        return WorkResult(WorkState.More)
    }

Concepts

Component	Description
Jobs	A registry of all the jobs being managed.
Job	The main component managing work between workers, queues, tasks, and policies.
Coordinator	Responsible for coordinating requests on Workers ( by default using Channels )
Workers	A collection of 1 or more workers ( linked to job )
Worker	Performs the actual work (on a possible Task)
WorkState	Represents the state of a single iteration of work done by a worker
Task	A single work item that can be performed by a worker
Queue	Represents a queue of Tasks either in-memory or persisted ( AWS SQS )
Action	The Action(s) that can be performed on a Job/Worker: Start, Stop, Pause, Resume, Control, Process, Delay
Priority	The priority level of a Queue
Policy	A form of middleware to inject into a Job to adjust behaviour
Status	The status ( idle, running, paused, stopped, completed ) of a worker or job.

Guide

Name	Description	More
1. Setup	How to setup a Worker	more
2. Register	How to set up a job and register it with Jobs system	more
3. Usage	How to start, stop, pause resume jobs and check status.	more
4. Cycle	The life-cycle of a worker	more
5. Types	OneTime, Paged, Queued Job types	more
6. Events	Subscribe to job events	more
7. Workers	Access to the jobs workers	more
8. Stats	Capturing job and worker statistics	more
9. Load	Performance and load	more

Identity

Every job must be set up with an Identity. This identity is transfered down to all workers ( given a unique uuid per worker ) and is used to uniquely identity jobs and workers.


    // slatekit.common.Identity is used to identify the job.
    val id = SimpleIdentity("demo", "newsletter", Agent.Job, "dev")

    // id.id   : {AREA}.{SERVICE}.{AGENT}.{ENV}.{INSTANCE}
    // id.id   : demo.newsletter.job.dev.09cd7588-24cb-425b-8cec-2494c4460387
    // id.name : demo.newsletter
    // id.full : demo.newsletter.job.dev
    // id.area : demo
    // id.svc  : newsletter
    // id.agent: Job
    // id.env  : dev
    // id.inst : 09cd7588-24cb-425b-8cec-2494c4460387
    // id.tags : []

Setup

You can set up workers in various ways using either simple functions ( which get wrapped inside a Worker) or extending from the Worker class itself and implementing the work method. For full example, refer to Example_Jobs.kt

1. Function

You can declare a simple 0 parameter function to perform some work


    suspend fun sendNewsLetter():WorkResult {
        // Perform the work ...
        return WorkResult(WorkState.Done)
    }

2. Function with Task

You can declare a simple 1 parameter that takes in a Task ( representing a unit of work ). This assumes you are sourcing the work from a Queue.


    suspend fun sendNewsLetter(task: Task):WorkResult {
        println(task.id)    // abc123
        println(task.from)  // queue://notification
        println(task.job)   // job1
        println(task.name)  // users.sendNewsletter
        println(task.data)  // { ... } json payload
        println(task.xid)   // 12345   correlation id
        // Perform the work ...
        return WorkResult(WorkState.Done)
    }

3. Worker class

Finally, you can extend from the Worker class. This is the most comprehensive option as it gives you the ability to customize various life-cycel events ( see later section ). The life-cycle events go from init -> work -> done.


    // slatekit.common.Identity is used to identify the job.
    val id = SimpleIdentity("samples", "newsletter", Agent.Job, "dev")

    // Worker
    class NewsLetterWorker : Worker<String>(id) {

        // Initialization hook ( for setup / logs / alerts )
        override suspend fun init() {
            notify("initializing", listOf(("id" to this.id.name)))
        }

        // Implement your work here.
        // NOTE: If you are not using a queue, this task will be empty e.g. Task.empty
        override suspend fun work(task:Task): WorkResult {
            // Perform the work ...
            return WorkResult(WorkState.Done)
        }

        // Transition hook for when the status is changed ( e.g. from Status.Running -> Status.Paused )
        override suspend fun move(state: Status) {
            notify("move", listOf("status" to state.name))
        }

        // Completion hook ( for logic / logs / alerts )
        override suspend fun done() {
            notify("done", listOf(("id" to this.id.name)))
        }

        // Failure hook ( for logic / logs / alerts )
        override suspend fun fail(err:Throwable?) {
            notify("failure", listOf(("id" to this.id.name), ("err" to (err?.message ?: ""))))
        }

        // Initialization hook ( for setup / logs / alerts )
        override fun notify(desc: String?, extra: List<Pair<String, String>>?) {
            val detail = extra?.joinToString(",") { it.first + "=" + it.second }
            // Simulate notification to email/alerts/etc
            println(desc + detail)
        }
    }

Back to features Back to top

Register

Once you have a work function, you can register it as a new Job.



    // Identity
    val id = SimpleIdentity("samples", "newsletter", Agent.Job, "dev")

    // Queues
    val queue1 = Queue("queue1", Priority.Mid, QueueSourceInMemory.stringQueue(5))
    val queue2 = Queue("queue2", Priority.Mid, QueueSourceInMemory.stringQueue(5))

    // Registry
    // NOTE: Create an identity for each job using the id template above.
    val jobs = Jobs(
            listOf(queue1, queue2),
            listOf(
                    slatekit.jobs.Job(id.copy(service = "job1"), ::sendNewsLetter),
                    slatekit.jobs.Job(id.copy(service = "job2"), listOf(::sendNewsLetter, ::sendNewsLetterWithPaging)),
                    slatekit.jobs.Job(id.copy(service = "job3"), listOf(::sendNewsLetterWithPaging)),
                    slatekit.jobs.Job(id.copy(service = "job4"), listOf(::sendNewsLetterWithPaging)),
                    slatekit.jobs.Job(id.copy(service = "job5"), listOf(::sendNewsLetterFromQueue), queue1),
                    slatekit.jobs.Job(id.copy(service = "job6"), listOf(NewsLetterWorker()), queue2)
            )
    )

    // Run job named "samples.job1"
    jobs.run("samples.job1")

Back to features Back to top

Usage

There are various operations on the job from checking the status, to management actions such as starting, stopping, etc.

1. Actions

Jobs that are paged or queued can be gracefully started, stopped, paused, resumed. This is accomplished by sending Job Requests to the Job. These requests impact the status of the job and all its workers. These are methods available on the Job component itself.

TIP: You can also issues individual actions/requests on 1 worker in the job by building up a JobRequest

Name	Status	Purpose
start	Starting	Starts the job and its associated workers
stop	Stopped	Stops the job and its associated workers
pause	Paused	Pauses the job and its associated workers
resume	Running	Resumes the jobs and its associated workers
process	Running	Issues a single process / work request


    // Assume jobs are registered in the Jobs component.
    // ....
    // See registration section

    // Get a job by its name
    val job = jobs.get("samples.job1")

    // Perform operations
    job?.let { job ->

        // NOTES:
        // 1. This does not immediately perform the action.
        // 2. A Job request is sent to the Job Channel
        // 3. A Job then delegates the respective action to its workers
        job.start()
        job.stop()
        job.pause()
        job.resume()
        job.process()
    }

2. Status

You can check the status of the job. The Status range are available in Status


    // Get a job by its name
    val job = jobs.get("samples.job1")

    // Check status
    job?.let { job ->
        // Get current status
        val status = job.status()

        // Check status
        job.isIdle()
        job.isRunning()
        job.isPaused()
        job.isStopped()
        job.isComplete()
        job.isFailed()
        job.isStoppedOrPaused()

        // Check for specific status
        job.isState(Status.Running)
        ""
    }

Back to features Back to top

Cycle

Workers have several life-cycle event methods. They are called in order and the status of the worker changes after the event.

Name	Status	Purpose
init	Starting	initialization hook for the worker
work	Running	initialization hook for the worker
fail	Failed	Called in the event of an error/exception/failure
done	Complete	Called when the work method has issues Work.Done

Back to features Back to top

Types

There are different types of jobs based on whether they run all their work in 1 go or perform work in batches/pages. This is (currently) not indicated explicitly at the function/worker level, but is based on what the function/work methods returns for the WorkState.

1. OneTime

A one time worker simply performs the long-running operation and returns a WorkResult indicating it’s done.


    suspend fun sendNewsLetter():WorkResult {
        // Process the work
        // ...
        return WorkResult(WorkState.Done)
    }

2. Paged

A paged worker runs performs work in batches or pages. After performing a batch of work, this paged worker must return a WorkState.Next.


    // This keeps track of the page/offset
    val offset = AtomicInteger(0)
    val batchSize = 4
    suspend fun sendNewsLetterWithPaging():WorkResult {
        // Process the work
        // ...

        // Increment the batch/page offset for next time
        offset.addAndGet(batchSize)

        // Indicate to the system this is paged and there is more to do.
        return WorkResult.next(
            offset = offset.get() + batchSize.toLong(),
            processed = batchSize
            reference = "newsletters"
        )
    }

3. Queued

A queued worker runs work via Tasks from a Queue.


    suspend fun sendNewsLetterFromQueue(task: Task):WorkResult {

        // Get data out of the task
        val userId = task.data.toInt()

        // Simulate getting the user and sending the newsletter
        val user = getUser(userId)
        send(task.job, "Latest News Letter!", user)

        // Acknowledge the task or abandon via task.fail()
        task.done()

        // Indicate that this can now handle more
        return WorkResult(WorkState.More)
    }

Back to features Back to top

Events

You can subscribe to various job events such as any Status changes or for a specific Status change.


    // Subscribe to changes in status
    job.subscribe { println("Job: ${it.id} status changed to ${it.status().name}") }

    // Subscribe to change to Stopped status
    job.subscribe(Status.Stopped) { println("Job: ${it.id} stopped!")  }

Back to features Back to top

Policies

You can set up custom policies which essentially represent middleware functions to execute at various times and/or conditions of workers and jobs. Policies are available in the slatekit-functions project ( not yet documented).


    // There are 3 policies setup for this job:
    // 1. Every: for every 10 items processed, call the function supplied
    // 2. Limit: limit number of items to process to 12. ( useful for "waves")
    // 3. Ratio: Ensure the job stops if the error (failed) job ratio hits 10%
    val job = slatekit.jobs.Job(id.copy(service = "job7"), listOf(::sendNewsLetterWithPaging),
        policies = listOf(
            Every(10, { req, res -> println("Paged : " + req.task.id + ":" + res.msg) }),
            Limit(12, true, { req -> req.context.stats.counts }),
            Ratio(.1, slatekit.results.Status.Errored(0, ""), { req -> req.context.stats.counts })
        )
    )

Back to features Back to top

Workers

A job internally holds a collection of workers via Workers. Each worker has an identity (based off the job’s identity ) in order to uniquely identify it. You can get the ids of all the workers and get the worker context which holds various components like polices ( middleware ) and diagnostics/stats.


    // Get the workers collection ( Workers )
    val workers = job.workers

    // Get all worker ids ( List<Identity> )
    val workerIds = workers.getIds()

    // Get the context for a specific worker ( WorkContext )
    val workerContext = job.workers.get(workerIds.first())

    // The worker performing work on tasks
    workerContext?.let { ctx ->

        // Identity of the worker parent ( Job.id )
        println(ctx.id)

        // Worker itself
        ctx.worker

        // Worker middleware applied
        ctx.policies

        // Worker statistics
        ctx.stats
    }

Back to features Back to top

Stats

Statistics are recorded at the worker level. There is ( currently ) no way aggregate statistics across all workers. But this can be done and/or integrated with a 3rd-party metrics library like Micrometer.


    // Get the workers collection ( Workers )
    val workers = job.workers

    // Get all worker ids ( List<Identity> )
    val workerIds = workers.getIds()

    // Get the context for a specific worker ( WorkContext )
    val workerContext = job.workers.get(workerIds.first())

    // The worker performing work on tasks
    workerContext?.let { ctx ->

        // Worker statistics
        val stats = ctx.stats

        // Worker statistics
        // Calls: Simple counters to count calls to a worker
        println("calls.totalRuns: " + ctx.stats.calls.totalRuns())
        println("calls.totalPassed: " + ctx.stats.calls.totalPassed())
        println("calls.totalFailed: " + ctx.stats.calls.totalFailed())

        // Counts: Counts the result success/failure categories
        // See slatekit.results.Status.kt for more info
        println("counts.totalProcessed : " + ctx.stats.counts.totalProcessed())
        println("counts.totalSucceeded : " + ctx.stats.counts.totalSucceeded())
        println("counts.totalDenied    : " + ctx.stats.counts.totalDenied())
        println("counts.totalInvalid   : " + ctx.stats.counts.totalInvalid())
        println("counts.totalIgnored   : " + ctx.stats.counts.totalIgnored())
        println("counts.totalErrored   : " + ctx.stats.counts.totalErrored())
        println("counts.totalUnexpected: " + ctx.stats.counts.totalUnexpected())

        // Lasts: Stores the last request/result of an call to work
        println("lasts.totalProcessed : " + ctx.stats.lasts?.lastProcessed())
        println("lasts.totalSucceeded : " + ctx.stats.lasts?.lastSuccess())
        println("lasts.totalDenied    : " + ctx.stats.lasts?.lastDenied())
        println("lasts.totalInvalid   : " + ctx.stats.lasts?.lastInvalid())
        println("lasts.totalIgnored   : " + ctx.stats.lasts?.lastIgnored())
        println("lasts.totalErrored   : " + ctx.stats.lasts?.lastErrored())
        println("lasts.totalUnexpected: " + ctx.stats.lasts?.lastUnexpected())

        // You can also hook up loggers and events
        ctx.stats.logger
        ctx.stats.events
    }

Load

Performance and load docs coming soon
